Palm Oil Filter Machine

Crude palm oil obtained by pressing contains more impurities, which need to be separated by filtration equipment or centrifugal separation equipment. The common filtration equipment is vibrating screen, and the centrifugal equipment is decanter centrifuge.

PRODUCTION CAPACITY: 1-60TPH

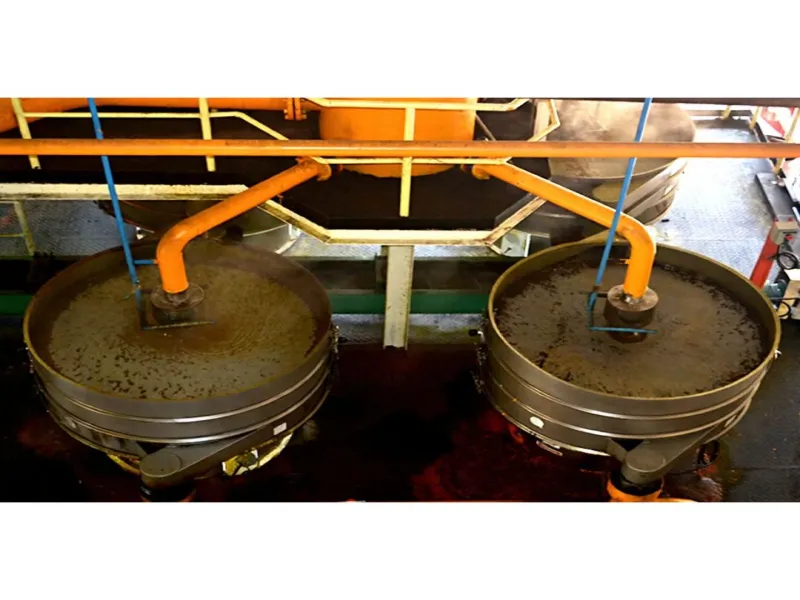

Vibrating Screen
Compared with the belt filter of the same type, the energy consumption of the vibrating screen is less and the area occupied is not large.
Model: Circular, XS30 S888/Vibrodinamic;
Function: Screening of crude oil before clarification process;
Capacity: 15 tons/hr of diluted crude oil;
Weight：650kgTechnology parameters：
Size: 60inch;
Material: SUS304;
Power: 2.5HP;
No.of deck: Double deck;
Screen mesh: 40/20 mesh (market grade).

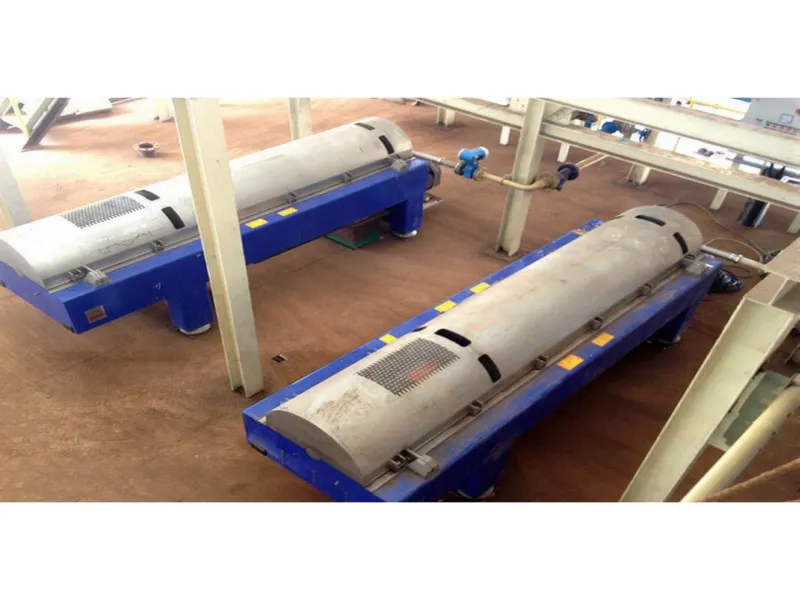

Decanter Centrifuge
Our company’s decanter centrifuge has reasonable structure, advanced technology and fine production, which can concentrate, dehydrate or fractionate solid particles with a particle size ranging from a few microns to three millimeters.
Model: PANX 750 D2 PRO;
Function: Centrifugal Separation and recovery of Oil from Sludge from the under flow of the sludge tank;
Capacity: 30 m³/hour;
Bowl material: Stainless steel.
